SISIC ceramic sic silicon carbide grinding cylinder/barrel for nano sand mill

RBSiC (SiSiC) lining have superior characteristics such as wear resistance, extreme hardness, corrosion resistance, high temperature tolerance, oxidation resistance, long time service life.

The series of products are widely used in all kinds of equipments.

Inquiry

Contact: * Company: MSN/skype: Subject: Tel: Fax: E-mail: * Website: Content: * Code: *(marked *should be filled)

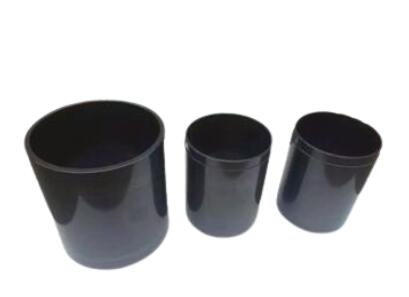

Silicon Carbide Abrasion-Resistant Barrel / Grinding Cylinder

Silicon carbide grinding cylinders can be custom-manufactured with internal ribs according to design requirements. Sealing grooves can be machined on the inner/outer diameters and end faces to meet various user design needs.

Typical Applications

• Liners for pipelines or grinding mills operating under conditions of strong corrosion, particle erosion, and high temperatures.

• Industries Served: Fine Chemicals, Pharmaceuticals, Medical, Semiconductor, Lithium Battery Materials, etc.

Features & Advantages

• Maximum outer diameter up to 350mm, height up to 2000mm (based on current equipment capabilities).

• Available as sintered green bodies with a diameter tolerance of +/- 2mm.

• Inner/outer diameters and end faces can be precision-machined for sealing surfaces, achieving a machining tolerance of 0.05mm and a surface roughness of Ra 0.8µm.

• Each cylinder undergoes strict dimensional inspection and surface fluorescent penetrant testing (FPT) before shipment.

• Density greater than 3.14 g/cm³, Vickers hardness over 23 GPa, ensuring high wear resistance.

• Material is certified by TUV and FDA, meeting requirements for food-grade media transport.
