1:High temperature tolerance
2:High thermal conductivity
3:Excellent oxidating resistance.
4:Corrosion resistance
5.Long service life
Inquiry
|

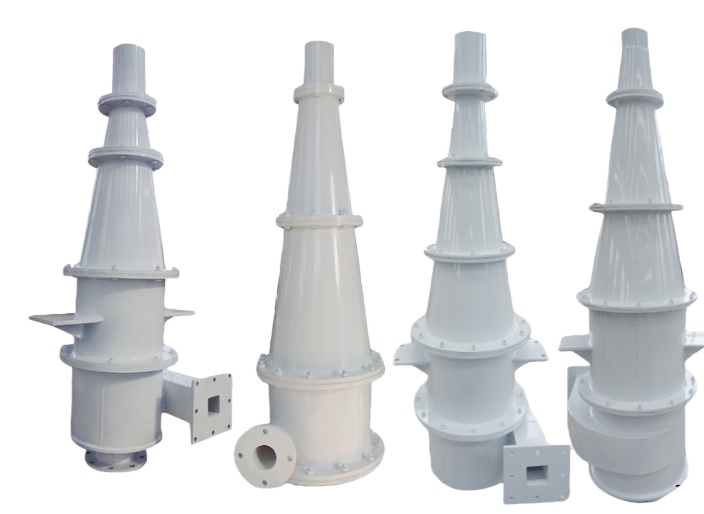

FX350 High Wear-Resistant Ceramic-Lined Hydrocyclone
Product Overview
The FX350 Hydrocyclone is a highly efficient classification device designed for demanding solid-liquid separation applications. Its core advantage lies in the use of high-performance ceramic liners, with optional materials including Reaction-Bonded Silicon Carbide (RB-SiC), High-Purity Alumina (Al₂O₃), or Special Composite Ceramics. This provides an outstanding protective solution for various wear and corrosion environments, significantly extending equipment service life and reducing overall operating and maintenance costs.
Core Advantages
-
Extreme Wear Resistance & Extended Life: Utilizes ultra-hard ceramic liners (e.g., RB-SiC with a Mohs hardness >9.5), offering wear resistance over 10 times greater than high-chromium cast iron, effectively resisting severe abrasion from slurries and tailings.
-
Strong Corrosion Resistance: Ceramic materials are chemically stable, resistant to acidic, alkaline, and other corrosive media, suitable for complex chemical environments.
-
Efficient and Stable Separation: Optimized flow path design and cone angles generate a stable, powerful vortex field, enabling precise particle size classification and high-density underflow with high separation efficiency.
-
Lower Maintenance Costs: Exceptional wear resistance significantly reduces downtime for replacements and spare part consumption, ensuring continuous operation.
Typical Applications
-
Metal Mining: Primary/secondary closed-circuit grinding classification, concentrate/tailing thickening and dewatering.
-
Coal Washing: Coal slime water thickening, dense medium separation.
-
Power & Environmental Protection (FGD): Limestone slurry classification, gypsum slurry thickening in desulfurization systems.
-
Non-Metallic Minerals & Chemical Industry: High-purity powder classification, catalyst recovery, etc.
Technical Specifications (Example)
-
Model: FX350 (Full range from FX75 to FX710 available by customization)
-
Standard Capacity: 70-150 m³/h (depending on specific conditions)
-
Cut Size: 50-150 μm (adjustable)
-
Operating Pressure: 0.06-0.2 MPa
-
Main Materials: Carbon steel shell + Customized Ceramic Liner (RB-SiC / Alumina, etc.)
Selection Advice
We can recommend the most cost-effective ceramic liner material and equipment configuration based on your specific operating conditions (e.g., material hardness, acidity/alkalinity, particle size requirements, working pressure), providing you with the most cost-efficient wear solution.
